Hi everyone,

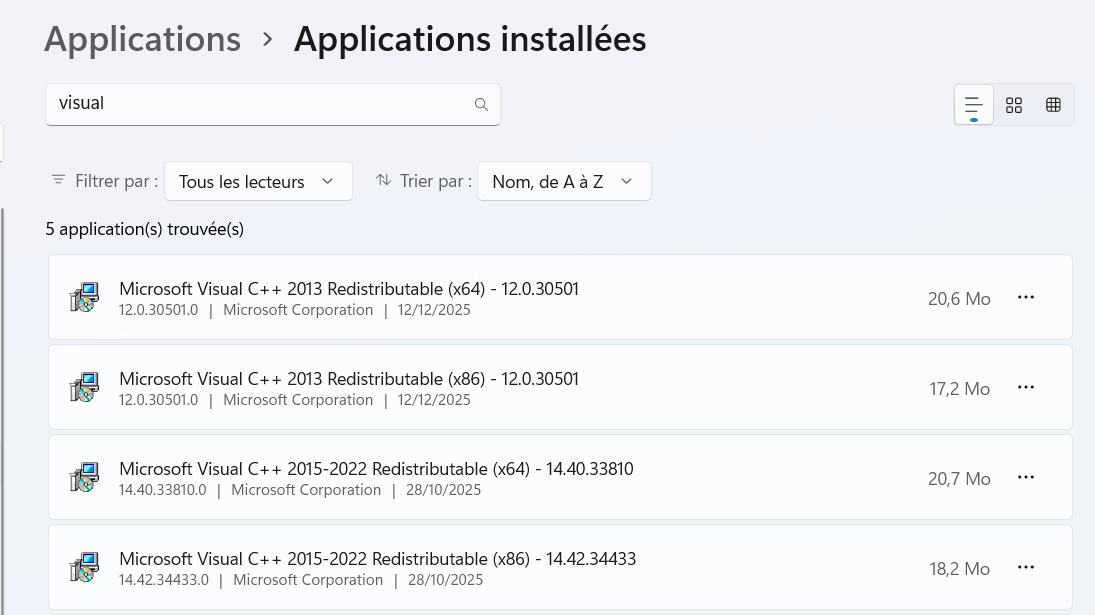

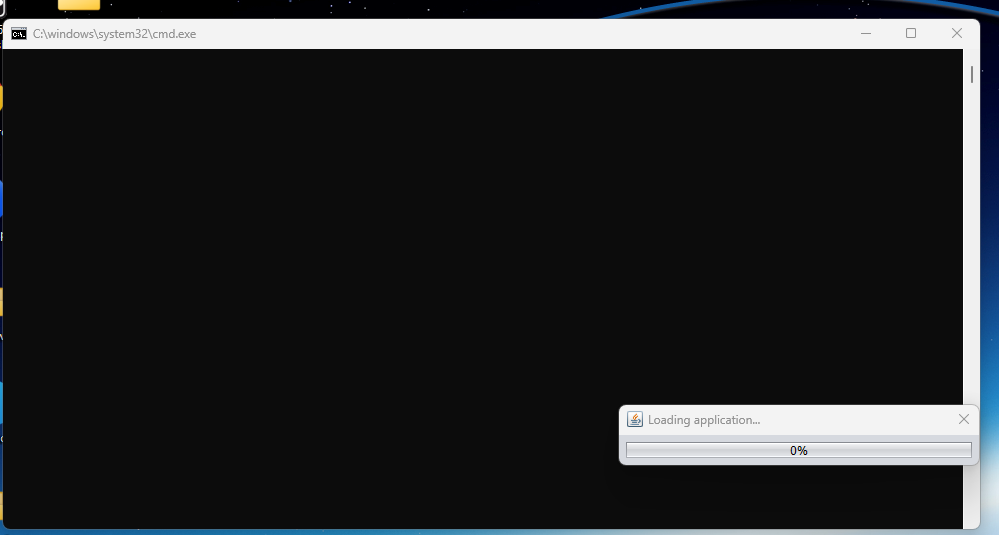

I have an issue loading both SPIS.bat and SPISno3D.bat, as when I run both files I get stuck at 0% loading. This happened after installing the 2013 Visual C++ Redistributable. I tried running older versions of SPIS, but I get the same problem with 6.1.0, 6.2.6, 6.2.4. The log console also doesn’t open and nothing posts in the cmd window. Any help or ideas would be appreciated, thanks in advance!

Capture d’écran 2025-12-12 122852
Capture d’écran 2025-12-12 1228521095×615 78.5 KB

Capture d’écran 2025-12-12 124720
Capture d’écran 2025-12-12 124720999×535 42.4 KB

2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Starting SPIS NUM bundle(s)
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] ${git.commit.id}, ${git.commit.id.describe-short}, ${git.commit.message.short},${git.commit.user.email}, ${git.commit.time}
2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle passive_discharging 1.0.4 is now registered.
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12, New fixed versions of SPIS NUM Plugins., trouche@artenum.com, 2024-10-10T11:12:09+0200
2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle science_payload 1.0.4 is now registered.
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle liquid_ion_thruster 1.0.2 is now registered.
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12, New fixed versions of SPIS NUM Plugins., trouche@artenum.com, 2024-10-10T11:12:09+0200
2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle aiseps 5.2.12 is now registered.
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle erosion_contamination 1.0.14 is now registered.
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12, New fixed versions of SPIS NUM Plugins.,trouche@artenum.com, 2024-10-10T11:12:09+0200
2025-12-12 12:10:19,803 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle dust 5.2.12 is now registered.
2025-12-12 12:10:19,803 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,819 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle thermic 1.0.2 is now registered.
2025-12-12 12:10:19,819 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,819 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle low_noise_distributions 1.0.2 is now registered.
2025-12-12 12:10:19,820 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,820 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle advanced_field_solvers 1.0.2 is now registered.
2025-12-12 12:10:19,820 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,820 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle highvoltage 1.0.12 is now registered.
2025-12-12 12:10:19,820 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,820 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle material_models 1.0.0 is now registered.
2025-12-12 12:10:19,820 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,820 INFO s.U.i.SpisIO [SpisIO.java:367] Bundle electric_propulsion 1.0.10 is now registered.
2025-12-12 12:10:19,820 DEBUG s.U.i.SpisIO [SpisIO.java:358] a51fb1aa6aa8e5388760a155cbc9f1d3fe54ecb4, 6.1.2-12,New fixed versions of SPIS NUM Plugins., trouche@artenum.com,2024-10-10T11:12:09+0200
2025-12-12 12:10:19,828 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.passive_discharging.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:19,828 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.science_payload.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:19,945 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,945 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,960 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,976 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:19,992 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,007 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,023 DEBUG s.U.i.SpisIO [SpisIO.java:134] 0
2025-12-12 12:10:20,023 INFO s.U.i.SpisIO [SpisIO.java:367] particle Xe+ associated with material xenon
2025-12-12 12:10:20,023 INFO s.U.i.SpisIO [SpisIO.java:367] particle H+ associated with material hydrogen
2025-12-12 12:10:20,023 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.aiseps.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:20,039 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.thermic.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:20,039 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.low_noise_distributions.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:20,039 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.advanced_field_solvers.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:20,039 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.highvoltage.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:20,070 DEBUG s.U.i.SpisIO [SpisIO.java:134] spis.bundles.electric_propulsion.osgi.BundleInit not found by org-spis-num-core [96]
2025-12-12 12:10:20,070 INFO s.U.i.SpisIO [SpisIO.java:367] SPIS NUM started.
2025-12-12 12:10:20,243 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘RayTracing’ registered.
2025-12-12 12:10:20,290 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘CAD Module’ registered.
2025-12-12 12:10:20,290 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘CAD-Editor Module’ registered.
2025-12-12 12:10:20,309 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘Global Parameters Editor’ registered.
2025-12-12 12:10:20,309 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘GMSH exucution module’ registered.
2025-12-12 12:10:20,309 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘Keridwen Group Editor module’ registered.
2025-12-12 12:10:20,322 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘Live monitoring’ registered.
2025-12-12 12:10:20,338 TRACE c.a.t.u.l.LookAndFeelLoader [LookAndFeelLoader.java:81] Trying setup of LAF with ordered list: [Nimbus]
2025-12-12 12:10:20,338 TRACE c.a.t.u.l.LookAndFeelLoader [LookAndFeelLoader.java:98] Trying setup of ‘Nimbus’ laf.
2025-12-12 12:10:20,431 TRACE c.a.t.u.l.LookAndFeelLoader [LookAndFeelLoader.java:107] Setting JAVA ‘javax.swing.plaf.nimbus.NimbusLookAndFeel’ laf.
2025-12-12 12:10:20,462 DEBUG c.a.t.u.l.LookAndFeelLoader [LookAndFeelLoader.java:164] No custom Nimbus colours found.
2025-12-12 12:10:20,839 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘UI Manager’ registered.
2025-12-12 12:10:21,360 DEBUG o.k.m.m.d.m.i.DatabaseGuiImpl [DatabaseGuiImpl.java:67] Creating new wizard service for integrated mode.
2025-12-12 12:10:21,372 TRACE o.k.c.m.i.CoreEventDispatcher [CoreEventDispatcher.java:153] Controller for ‘MaterialDatabase’ registered.
2025-12-12 12:10:21,385 DEBUG BundleController:MaterialDatabase [CommandLogLevel.java:84] Loads input and persistence data - .\resources\material-catalogue
2025-12-12 12:10:21,398 TRACE o.k.m.m.d.p.i.DefaultPluginsRegistry [DefaultPluginsRegistry.java:198] Listener plugin added: ApplicationMenus

2

It seems the application is stuck on loading materials for the material database tool.

As a temporary try, can you do the following :

  • go to resources and edit org-spis-dev.properties
  • add a # at the beginning of the two following lines
    • `org.keridwen.modelling.material.database.data.path`
    • `org.keridwen.modelling.material.database.persistence.path`

And try to reload the application.
If it works, you will not have access to the material database in the tools but it seems that there are file rights issue, in this case also ensure that you can define groups in the Group Editor and that materials are present.
